Molecular dynamics
Enhanced sampling molecular dynamics
Review exported enhanced-sampling trajectories while keeping bias, reweighting, collective variables, and convergence external and explicit.
Inputs
2 required
Methods
1 connected
- 01MD Trajectory Analysis · Enhanced Sampling Review
Upload an externally generated, appropriately reconstructed trajectory for RMSD, RMSF, PCA, and clustering review.
Use this templateWhat is enhanced sampling molecular dynamics?
Enhanced sampling molecular dynamics is a family of simulation methods that changes how molecular configurations are sampled so slow energy barriers are crossed more often. It can use bias potentials, generalized ensembles, accelerated dynamics, restraints, or related strategies, while methods such as metadynamics, umbrella sampling, and replica-based approaches answer different questions and require method-specific reweighting and convergence evidence.
Choose the enhanced-sampling method from the target observable and known slow coordinates. A poorly chosen collective variable can hide orthogonal barriers, while aggressive bias can distort pathways. Pilot simulations, restraint overlap, bias deposition settings, and independent starts should be planned before production.
ProteinIQ does not currently apply enhanced-sampling bias or perform method-specific reweighting. The connected workflow reviews a compatible trajectory exported from an external engine. Free-energy surfaces, statistical weights, bias histories, window overlap, and convergence must be calculated and validated externally before biological interpretation.
When to use enhanced sampling molecular dynamics
- Best fit. Rare transitions, conformational landscapes, and free-energy profiles
- Required evidence. External topology and trajectory plus collective variables, bias history, weights, and convergence evidence
Benefits of enhanced sampling molecular dynamics
- Crosses slow barriers. Crosses slow barriers for projects focused on rare transitions, conformational landscapes, and free-energy profiles.
- Maps broader landscapes. Maps broader landscapes for projects focused on rare transitions, conformational landscapes, and free-energy profiles.
- Can estimate free-energy differences. Can estimate free-energy differences for projects focused on rare transitions, conformational landscapes, and free-energy profiles.
Primary limitations
- Method choice is consequential. Method choice is consequential. Address this with external topology and trajectory plus collective variables, bias history, weights, and convergence evidence.
- Reweighting can be fragile. Reweighting can be fragile. Address this with external topology and trajectory plus collective variables, bias history, weights, and convergence evidence.
- Bias does not guarantee convergence. Bias does not guarantee convergence. Address this with external topology and trajectory plus collective variables, bias history, weights, and convergence evidence.
Enhanced sampling molecular dynamics methods
Metadynamics deposits history-dependent bias along collective variables; umbrella sampling restrains overlapping windows; accelerated and generalized-ensemble methods alter other parts of the Hamiltonian or sampling distribution. Their outputs cannot be interpreted with one generic recipe.
PLUMED integrates many enhanced-sampling and free-energy methods with engines including GROMACS and OpenMM. The PLUMED input, bias files, kernels, and reweighting commands are part of the reproducible method, not optional metadata.
Enhanced sampling molecular dynamics applications
Enhanced sampling molecular dynamics is best suited to rare transitions, conformational landscapes, and free-energy profiles. Match the modeled system, timescale, resolution, and ensemble to the observable rather than choosing a protocol because it produces a longer trajectory or more elaborate figure.
Use simulation as model-based evidence. Connect trajectory observations to experimental data, alternative parameterizations, independent starts, and uncertainty whenever the downstream claim concerns mechanism, affinity, kinetics, stability, or population.
How to run enhanced sampling molecular dynamics online
The connected workflow is a post-run review workflow. Generate the scientific simulation externally, preserve its method-native records, then upload compatible files for complementary structural analysis.
- Define objective. Define the target observable and justify collective variables, windows, temperatures, or scaled interactions.
- Apply bias externally. Run the enhanced-sampling protocol externally with complete bias and restart records.
- Reweight results. Reconstruct or reweight the intended ensemble using the method-specific statistical treatment.
- Review structures. Upload a compatible trajectory for complementary structural and collective-motion analysis.
- Test convergence. Test block convergence, overlap, hysteresis, independent starts, and sensitivity to analysis choices.
How to interpret enhanced sampling molecular dynamics results
Free-energy differences require statistically weighted probabilities in the intended ensemble. A colorful projection of biased frames is not a free-energy surface unless weights, normalization, and convergence are defined.
Inspect hidden coordinates, recrossings, window overlap, bias stationarity, independent-run agreement, and uncertainty. Report regions unsupported by sampling instead of smoothing them into apparent states.
How enhanced sampling molecular dynamics works
Upload an externally generated, appropriately reconstructed trajectory for RMSD, RMSF, PCA, and clustering review.
- Define objective. Define the target observable and justify collective variables, windows, temperatures, or scaled interactions.
- Apply bias externally. Run the enhanced-sampling protocol externally with complete bias and restart records.
- Reweight results. Reconstruct or reweight the intended ensemble using the method-specific statistical treatment.
- Review structures. Upload a compatible trajectory for complementary structural and collective-motion analysis.
- Test convergence. Test block convergence, overlap, hysteresis, independent starts, and sensitivity to analysis choices.
Inputs and outputs
Check formats before running, then inspect and download the result from every workflow step.
Inputs
- Simulation evidence.
PDBmmCIFTPRGROXTCA compatible topology and reconstructed or reweighted trajectory plus external bias, collective-variable, weight, and convergence files.
Outputs
- Simulation outputs.
XTCPDBCSVJSONZIPComplementary structural metrics, PCA, and clusters; bias application, reweighting, and free-energy analysis remain external.
Tools for enhanced sampling molecular dynamics
Use these methods to prepare inputs, run the core analysis, inspect outputs, and validate the evidence described in this workflow.
OpenMM
Run GPU-accelerated all-atom protein or protein–ligand simulations
GROMACS
Run conventional protein molecular dynamics with classical force fields
MD Trajectory Analysis
Analyze compatible trajectories with structural and dynamical metrics
pyRMSD
Calculate pairwise RMSD matrices for exported structure ensembles
RMSD calculator
Compare representative structures with RMSD
Radius of gyration
Measure compactness for representative structures
DSSP
Assign secondary structure to representative protein conformations
SASA calculator
Calculate solvent-accessible surface area for exported structures
MolProbity
Validate representative protein conformations

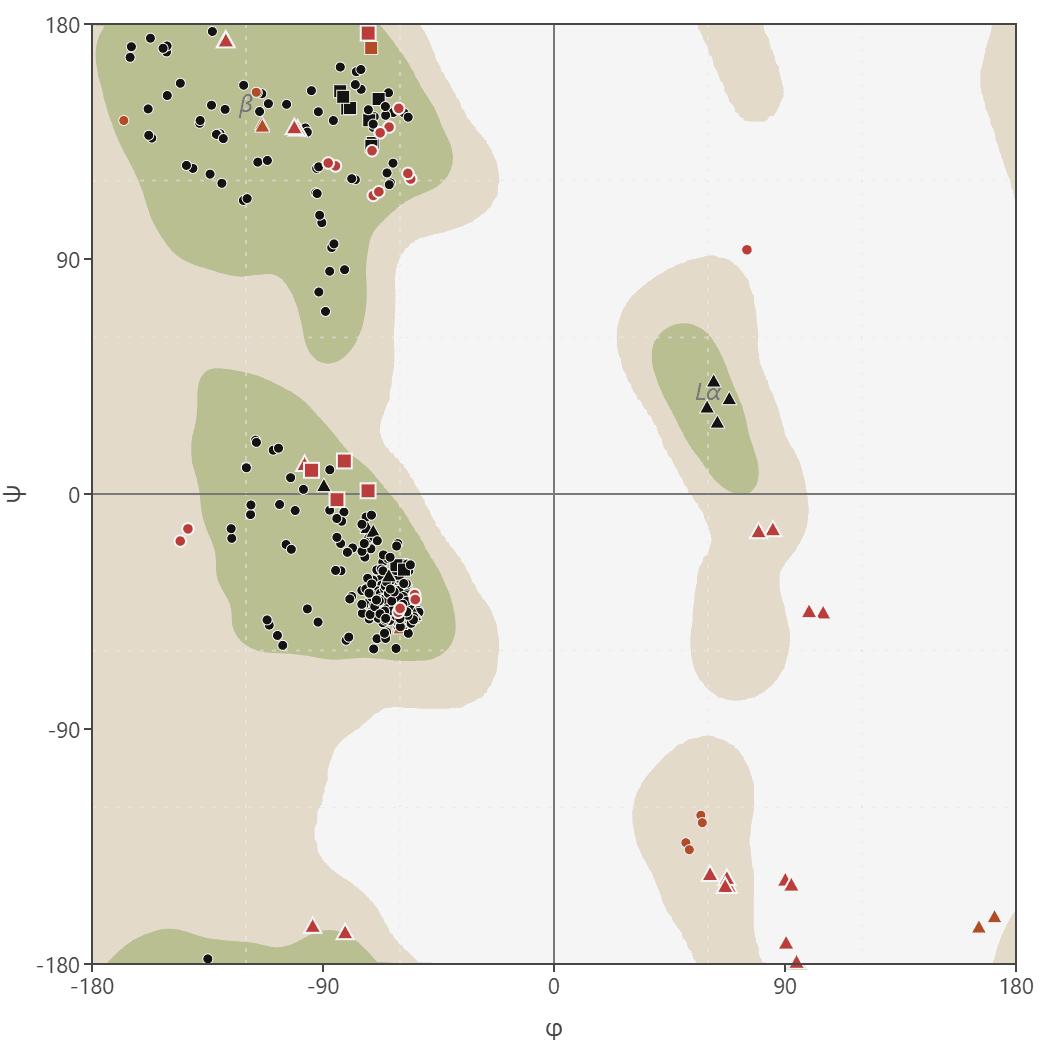

Ramachandran plot
Inspect backbone dihedral quality in exported conformations
PDBFixer
Repair missing atoms and standardize structures before simulation
PROPKA 3
Estimate pKa values and inspect protonation-sensitive sites
Other molecular dynamics workflows
Compare related approaches based on the molecular system, available evidence, required inputs, and decision you need to support.
Steered molecular dynamics
Applies a time-dependent pulling restraint to probe forced transitions, unbinding paths, or mechanical response.
Coarse-grained molecular dynamics
Groups atoms into interaction sites to access larger systems and longer effective timescales.
Replica exchange molecular dynamics
Runs interacting replicas at different temperatures or Hamiltonians and periodically attempts exchanges.
Protein molecular dynamics simulation
Simulates a solvated protein with a classical force field to study stability, flexibility, and conformational change.
All-atom molecular dynamics
Represents individual atoms explicitly under an atomistic force field and integration scheme.
Frequently asked questions
A compatible topology and reconstructed or reweighted trajectory plus external bias, collective-variable, weight, and convergence files.
Complementary structural metrics, PCA, and clusters; bias application, reweighting, and free-energy analysis remain external.
Not currently. The simulation must be generated with a suitable external engine. ProteinIQ can review compatible topology and trajectory files with MDAnalysis-based structural metrics, while method-specific logs, bias, forces, exchange statistics, or reweighting remain external.
There is no universal number. Use independent starts and enough sampling to evaluate the slow observables behind the claim. Report replicate-level results, blockwise stability, and uncertainty rather than pooling trajectories without checking agreement.
Retain engine and plugin versions, collective variables, bias parameters, windows or replicas, restart files, bias history, weights, reconstruction commands, seeds, and convergence tests.
A complete enhanced sampling molecular dynamics project is commonly quote-based because system preparation, parameterization, sampling length, replica count, analysis, and interpretation vary substantially. Current published examples span from $50 for a bounded 100 ns GROMACS simulation to a $5,000 minimum for a dedicated commercial molecular-dynamics engagement.
Those prices describe materially different deliverables, so compare the included preparation, validation, replicates, analysis, raw files, interpretation, and support—not only trajectory length. Membrane building, unusual residues or ligands, advanced sampling, and convergence assessment can dominate the real scope.
ProteinIQ self-service starts at $29 per month for academic Plus and $99 per month for commercial Pro, with the configured run estimated in credits before submission. Done-for-you molecular dynamics work is scoped separately when preparation, method design, external advanced sampling, or interpretation is required.
